ESPresense

Settings

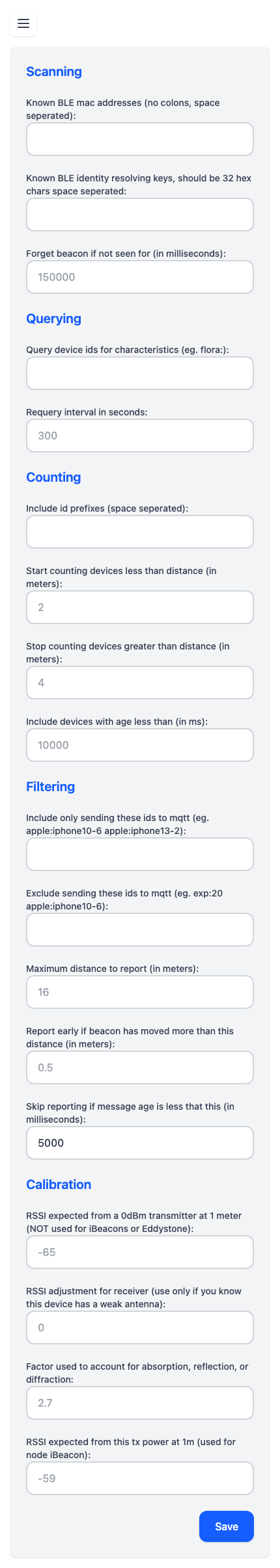

Screenshot of ESP32 full settings interface

These settings are accessible from the Settings page in the device web UI. Most can also be written live over MQTT — defaults and ranges for every option are listed in the MQTT settings reference. The ones marked boot only below are read once at startup and have no <key>/set handler; change them in the captive portal / Settings page and reboot the node.

Scanning

Section titled “Scanning”
  • Known BLE mac addresses (no colons, space separated) — devices that use a random-but-static MAC. ESPresense publishes them with the stable id known:{mac}.
  • Known BLE identity resolving keys — 32-hex-character IRKs (space separated) that let ESPresense recognise Apple devices through their address rotation. See Apple devices for extraction tips.
  • Forget beacon if not seen for (in milliseconds) — drop idle fingerprints (forget_ms, default 150000 ms = 2.5 minutes). Boot only.
  • Maximum BLE fingerprints to track — caps fingerprint memory at boot (max_fingerprints, default 100; 200 on ESP32-S3/C3/C6). Boot only.
  • Allow active BLE connections to all devices — connect_all. Bypasses the query allow-list and connects to everything. Expensive and rarely useful outside protocol debugging.

Querying

Section titled “Querying”

Most BLE devices give a usable id from passive advertisements alone, but some need an active GATT connection to identify themselves. Query opens that connection and reads the Room Assistant id, model, and name characteristics. When the device responds, ESPresense upgrades to the most-selective id available.

  • Query device ids for characteristics — id-prefix allow-list (query), e.g. flora: for Xiaomi Mi Flora plant sensors.
  • Requery interval in seconds — re-issue the active query every N seconds (requery_ms, default 300, range 30–3600). Boot only.

Counting

Section titled “Counting”

A beta feature for devices that you can’t fingerprint individually but where the count itself is useful — exp:20 (COVID exposure apps), apple: (anonymous Apple devices), Microsoft:cdp (Microsoft devices). When set, auto-discovery adds a count sensor to your ESPresense node.

Only count_ids is live-settable. The three hysteresis knobs (count_enter, count_exit, count_ms) are read once at boot.

  • Include ID prefixes (count_ids).
  • Start counting devices less than distance (m) — “enter” radius (count_enter, default 2.0). Boot only.
  • Stop counting devices greater than distance (m) — “leave” radius (count_exit, default 4.0). Setting this above the enter radius creates a hysteresis band that prevents flapping. Boot only.
  • Include devices with age less than (ms) — drop a device from the count if its last advertisement is older than this (count_ms, default 10000). Boot only.

Filtering

Section titled “Filtering”
  • Include only sending these IDs to MQTT — if set, ONLY matching ids are published (include). Example: Apple:iphone10-6 Apple:iphone13-2.
  • Exclude sending these IDs to MQTT — drop matching ids before publish (exclude). Example: exp:20 Apple:iphone10-6.
  • Maximum distance to report (in meters) — distances above this are dropped as likely-noise (max_distance, default 16.0).
  • Report early if beacon has moved more than this distance — force-publish on a movement burst (skip_distance, default 0.5 m).
  • Skip reporting if message age is less than this (ms) — rate-limit per fingerprint (skip_ms, default 5000). The logic is: if the device was reported recently, suppress until either the report-early distance is exceeded or skip_ms elapses.

Calibration

Section titled “Calibration”

These settings control how ESPresense converts RSSI to a distance estimate. See Calibration for the full procedure.

  • RSSI expected from a 0dBm transmitter at 1 meter — reference RSSI for ad-hoc devices (ref_rssi, default -65). Not used for iBeacons or Eddystone — those carry their own calibrated RSSI in the advertisement.
  • RSSI adjustment for receiver — per-node offset to align antennas across boards (rx_adj_rssi, default 0; 20 on bare ESP32-S3 builds to compensate for the on-chip antenna). M5STICK and M5ATOM builds — even when they’re S3-based — keep the default at 0 because those board defines are matched before ESP32S3 in include/defaults.h.
  • Factor used to account for absorption, reflection, or diffraction — environmental path-loss exponent (absorption, default 2.7, range 1–5). Higher = more attenuation per meter.
  • RSSI expected from this tx power at 1m — calibration target for this node’s own iBeacon broadcasts (tx_ref_rssi, default -59).

For LED and GPIO sensor configuration (PIR motion, radar motion, switches, buttons), see Hardware.

For the full topic list, command shapes, and over-the-air examples, see MQTT.

Last verified against firmware v4.0.6 (main @ d9a1765, 2026-05-10).
